#include <gui_sizer.h>

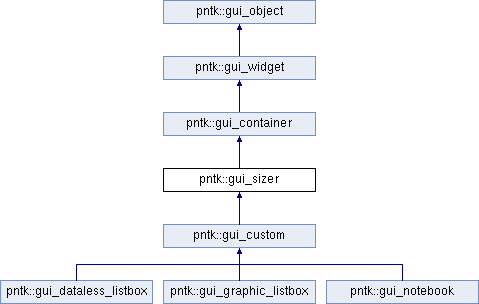

Inheritance diagram for pntk::gui_sizer:

Public Member Functions
	gui_sizer (int style, int column_count=1, int row_count=1)

virtual void	init (bool visible=true)

virtual void	add_child (gui_widget *child, int alignment=GUI_ALIGN_LEFT, int weight=0, bool recalc=true)

virtual void	recalc_sizes ()

virtual gui_size	get_min_size ()

virtual gui_size	get_size ()

virtual void	recalc_min_size ()

virtual int	get_border_style ()

virtual std::string	get_self_name ()

virtual widget_types	get_self_type ()

virtual gui_size	get_actual_min_size ()

void	recalc_reserved (gui_size &calc_static, gui_size &calc_weight)

Public Member Functions inherited from pntk::gui_container
	gui_container ()

	~gui_container ()

child_list &	get_children ()

void	set_sizes_dirty (bool state)

bool	get_sizes_dirty ()

void	check_integrity ()

virtual void	remove_child (gui_widget *child)

virtual void	remove_child_using_native (native_widget child)

virtual void	set_actual_size (gui_size size)

virtual bool	is_container ()

virtual void	get_sizer_padding (int &header, int &edge)

virtual void	set_actual_min_size (gui_size size)

virtual void	__internal_set_actual_size (gui_size size, bool propagate_to_os=true)

virtual void	__internal_set_actual_min_size (gui_size size)

Public Member Functions inherited from pntk::gui_widget
virtual void	set_configuration (gui_configuration &configuration)

virtual gui_configuration	get_configuration ()

virtual void	set_position (gui_point pos)

virtual void	set_actual_position (gui_point pos)

gui_point	get_position ()

gui_point	get_actual_position ()

gui_point	get_screen_position ()

virtual void	set_size (gui_size size)

gui_size	get_actual_size ()

virtual void	show (bool state)

virtual bool	is_owned ()

virtual void	set_border (int border)

virtual int	get_border ()

virtual void	set_border_style (int style)

virtual void	set_weight (int weight)

virtual int	get_weight ()

virtual void	set_alignment (int alignment)

virtual int	get_alignment ()

virtual void	set_style (int style)

virtual int	get_style ()

virtual void	set_font (gui_font *font)

virtual gui_font *	get_font ()

virtual void	set_system_cursor (gui_system_cursors cursor)

virtual gui_widget *	get_parent ()

gui_widget *	get_sibling (bool next)

gui_widget *	get_sequential (bool next, bool wrap=false)

virtual void	reparent (gui_widget *parent)

virtual native_widget	get_native_widget ()

virtual void	set_bg_color (gui_color color)

virtual void	set_fg_color (gui_color color)

virtual gui_color	get_bg_color ()

virtual gui_color	get_fg_color ()

virtual void	set_label (const std::string &text)

virtual std::string	get_label ()

virtual void	set_enabled (bool state)

virtual bool	get_enabled ()

virtual bool	is_visible ()

virtual bool	is_ok ()

virtual void	refresh (int flags=0, const gui_rect *area=nullptr)

gui_extra_data &	get_extra_data ()

virtual void	set_focus ()

virtual bool	has_focus ()

void	set_default ()

gui_size	bound_by_requested (gui_size size)

void	feed_mouse (int base_event, int events, bool &veto, gui_point cursor, int button)

virtual void	set_tooltip (std::string label)

virtual std::string	get_tooltip ()

virtual void	__internal_set_size (gui_size size, bool propagate_to_os=true)

virtual void	__internal_set_os_actual (gui_size size)

Public Member Functions inherited from pntk::gui_object
void	set_data (void *user_data)

void *	get_data ()

virtual void	connect (gui_event_listener call_back, void data=nullptr, bool managed=false)

virtual void	disconnect (gui_event_listener call_back, void data=nullptr)

pntk::gui_listener_chain *	__internal_disconnect (pntk::gui_listener_chain *matching_chain)

Additional Inherited Members
Public Types inherited from pntk::gui_object
typedef std::map< gui_object , gui_listener_chain >	event_map

Static Public Member Functions inherited from pntk::gui_widget
static void	get_widget_geometry (int alignment, gui_point base, gui_size max, gui_point &child_pos, gui_size &child_size)

Public Attributes inherited from pntk::gui_container
gui_size	min_size

Public Attributes inherited from pntk::gui_widget
gui_font *	font

gui_system_cursors	system_cursor

gui_size	requested_size

gui_size	extent

gui_extra_data	extra_data

Static Public Attributes inherited from pntk::gui_object
static event_map	windowing_events

Detailed Description

A general sizer class which can contain widgets that are automatically arranged in a specific layout dependent on the type of container.

Constructor & Destructor Documentation

◆ gui_sizer()

pntk::gui_sizer::gui_sizer	(	int	style,
		int	column_count = `1`,
		int	row_count = `1`
	)

Creates a new gui_sizer with the given style. Styles include GUI_SIZER_FIXED, GUI_SIZER_VERTICAL, GUI_SIZER_HORIZONTAL, GUI_SIZER_GRID, GUI_SIZER_FLEX_GRID. column_count and row_count only apply to SIZER_GRID.

Member Function Documentation

◆ add_child()

virtual void pntk::gui_sizer::add_child	(	gui_widget *	child,
		int	alignment = `GUI_ALIGN_LEFT`,
		int	weight = `0`,
		bool	recalc = `true`
	)

virtual

Adds a child to the sizer using the given alignment and weight.

Reimplemented from pntk::gui_container.

◆ get_actual_min_size()

virtual gui_size pntk::gui_sizer::get_actual_min_size ( )

virtual

Returns minimum size of the widget (without any border padding).

Reimplemented from pntk::gui_container.

Reimplemented in pntk::gui_graphic_listbox, pntk::gui_dataless_listbox, and pntk::gui_notebook.

◆ get_border_style()

virtual int pntk::gui_sizer::get_border_style ( )

virtual

Returns the current border style of the widget.

Reimplemented from pntk::gui_widget.

◆ get_min_size()

virtual gui_size pntk::gui_sizer::get_min_size ( )

virtual

Returns minimum size of the widget (including all border padding).

Reimplemented from pntk::gui_widget.

Reimplemented in pntk::gui_custom.

◆ get_self_name()

virtual std::string pntk::gui_sizer::get_self_name ( )

virtual

Returns the human readable name associated with the widget class type.

Reimplemented from pntk::gui_container.

Reimplemented in pntk::gui_graphic_listbox, pntk::gui_dataless_listbox, and pntk::gui_notebook.

◆ get_self_type()

virtual widget_types pntk::gui_sizer::get_self_type ( )

virtual

Returns the type of widget: GUI_TYPE_SIZER.

Reimplemented from pntk::gui_container.

Reimplemented in pntk::gui_graphic_listbox, pntk::gui_dataless_listbox, and pntk::gui_notebook.

◆ get_size()

virtual gui_size pntk::gui_sizer::get_size ( )

virtual

Returns the extent of the widget (including all border padding).

Reimplemented from pntk::gui_container.

◆ init()

virtual void pntk::gui_sizer::init ( bool visible = true )

virtual

Initializes the widget, setting default values to its members.

Reimplemented from pntk::gui_widget.

◆ recalc_min_size()

virtual void pntk::gui_sizer::recalc_min_size ( )

virtual

Sets the minimum size of the widget (not counting the border padding) to the given size. Intended for internal use only.

Reimplemented from pntk::gui_container.

◆ recalc_reserved()

void pntk::gui_sizer::recalc_reserved	(	gui_size &	calc_static,
		gui_size &	calc_weight
	)

Calculates

◆ recalc_sizes()

virtual void pntk::gui_sizer::recalc_sizes ( )

virtual

Forces a recalculation of all the childrens sizes and positions.

Reimplemented from pntk::gui_container.

The documentation for this class was generated from the following file:

include/gui_sizer.h
