#include <gui_widget.h>

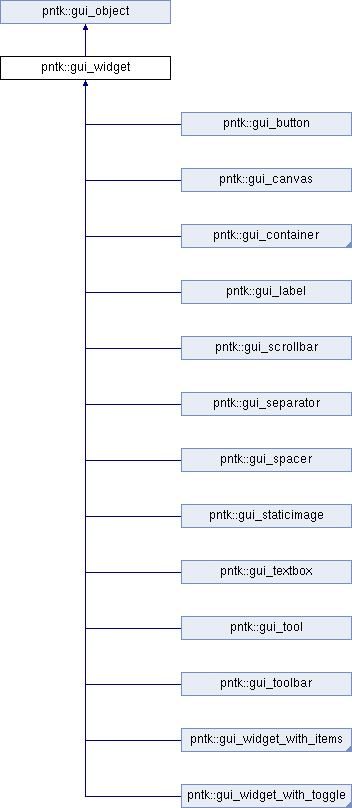

Inheritance diagram for pntk::gui_widget:

Public Member Functions
virtual void	init (bool visible=true)

virtual void	set_configuration (gui_configuration &configuration)

virtual gui_configuration	get_configuration ()

virtual void	set_position (gui_point pos)

virtual void	set_actual_position (gui_point pos)

gui_point	get_position ()

gui_point	get_actual_position ()

gui_point	get_screen_position ()

virtual void	set_size (gui_size size)

virtual void	set_actual_size (gui_size size)

virtual gui_size	get_size ()

gui_size	get_actual_size ()

virtual gui_size	get_min_size ()

virtual gui_size	get_actual_min_size ()

virtual void	show (bool state)

virtual bool	is_owned ()

virtual void	set_border (int border)

virtual int	get_border ()

virtual void	set_border_style (int style)

virtual int	get_border_style ()

virtual void	set_weight (int weight)

virtual int	get_weight ()

virtual void	set_alignment (int alignment)

virtual int	get_alignment ()

virtual void	set_style (int style)

virtual int	get_style ()

virtual void	set_font (gui_font *font)

virtual gui_font *	get_font ()

virtual void	set_system_cursor (gui_system_cursors cursor)

virtual gui_widget *	get_parent ()

gui_widget *	get_sibling (bool next)

gui_widget *	get_sequential (bool next, bool wrap=false)

virtual void	reparent (gui_widget *parent)

virtual bool	is_container ()

virtual native_widget	get_native_widget ()

virtual std::string	get_self_name ()

virtual widget_types	get_self_type ()

virtual void	set_bg_color (gui_color color)

virtual void	set_fg_color (gui_color color)

virtual gui_color	get_bg_color ()

virtual gui_color	get_fg_color ()

virtual void	set_label (const std::string &text)

virtual std::string	get_label ()

virtual void	set_enabled (bool state)

virtual bool	get_enabled ()

virtual bool	is_visible ()

virtual bool	is_ok ()

virtual void	refresh (int flags=0, const gui_rect *area=nullptr)

gui_extra_data &	get_extra_data ()

virtual void	set_focus ()

virtual bool	has_focus ()

void	set_default ()

gui_size	bound_by_requested (gui_size size)

void	feed_mouse (int base_event, int events, bool &veto, gui_point cursor, int button)

virtual void	set_tooltip (std::string label)

virtual std::string	get_tooltip ()

virtual void	__internal_set_size (gui_size size, bool propagate_to_os=true)

virtual void	__internal_set_actual_size (gui_size size, bool propagate_to_os=true)

virtual void	__internal_set_os_actual (gui_size size)

Public Member Functions inherited from pntk::gui_object
void	set_data (void *user_data)

void *	get_data ()

virtual void	connect (gui_event_listener call_back, void data=nullptr, bool managed=false)

virtual void	disconnect (gui_event_listener call_back, void data=nullptr)

pntk::gui_listener_chain *	__internal_disconnect (pntk::gui_listener_chain *matching_chain)

Static Public Member Functions
static void	get_widget_geometry (int alignment, gui_point base, gui_size max, gui_point &child_pos, gui_size &child_size)

Public Attributes
gui_font *	font

gui_system_cursors	system_cursor

gui_size	requested_size

gui_size	extent

gui_extra_data	extra_data

Friends
class	gui_sizer_component

class	sizer_component_fixed

class	sizer_component_grid

class	sizer_component_flex_grid

class	sizer_component_horizontal

class	sizer_component_vertical

class	gui_sizer

Additional Inherited Members
Public Types inherited from pntk::gui_object
typedef std::map< gui_object , gui_listener_chain >	event_map

Static Public Attributes inherited from pntk::gui_object
static event_map	windowing_events

Detailed Description

An abstract foundational widget from which all widgets must inherit.

Member Function Documentation

◆ bound_by_requested()

gui_size pntk::gui_widget::bound_by_requested ( gui_size size )

Takes a size value and returns a version of that size that is within the minimum/maximum size requested by the user.

◆ feed_mouse()

void pntk::gui_widget::feed_mouse	(	int	base_event,
		int	events,
		bool &	veto,
		gui_point	cursor,
		int	button
	)

Feed raw mouse events into this function to automatically handle propogation of specific events.

◆ get_actual_min_size()

virtual gui_size pntk::gui_widget::get_actual_min_size ( )

virtual

Returns minimum size of the widget (without any border padding).

Reimplemented in pntk::gui_graphic_listbox, pntk::gui_dataless_listbox, pntk::gui_notebook, pntk::gui_container, pntk::gui_combobox, pntk::gui_window, pntk::gui_sizer, pntk::gui_separator, and pntk::gui_canvas.

◆ get_actual_position()

gui_point pntk::gui_widget::get_actual_position ( )

Returns the position of the widget within its container (ignoring all border padding).

◆ get_actual_size()

gui_size pntk::gui_widget::get_actual_size ( )

Returns the extent of the widget (ignoring the border padding).

◆ get_alignment()

virtual int pntk::gui_widget::get_alignment ( )

virtual

Returns the alignment value of the widget.

◆ get_bg_color()

virtual gui_color pntk::gui_widget::get_bg_color ( )

virtual

Returns the widgets background color.

◆ get_border()

virtual int pntk::gui_widget::get_border ( )

virtual

Returns the border/padding size of the widget.

◆ get_border_style()

virtual int pntk::gui_widget::get_border_style ( )

virtual

Returns the current border style of the widget.

Reimplemented in pntk::gui_sizer.

◆ get_enabled()

virtual bool pntk::gui_widget::get_enabled ( )

virtual

Returns if the widget is enabled.

◆ get_extra_data()

gui_extra_data& pntk::gui_widget::get_extra_data ( )

Returns a gui_extra_data structure for this widget.

◆ get_fg_color()

virtual gui_color pntk::gui_widget::get_fg_color ( )

virtual

Returns the widgets foreground color.

◆ get_font()

virtual gui_font* pntk::gui_widget::get_font ( )

virtual

Returns the widgets font.

◆ get_label()

virtual std::string pntk::gui_widget::get_label ( )

virtual

Returns the text on the label of the widget.

Reimplemented in pntk::gui_window, pntk::gui_tool, pntk::gui_radiobutton, pntk::gui_togglebutton, pntk::gui_frame, pntk::gui_label, pntk::gui_button, and pntk::gui_checkbox.

◆ get_min_size()

virtual gui_size pntk::gui_widget::get_min_size ( )

virtual

Returns minimum size of the widget (including all border padding).

Reimplemented in pntk::gui_sizer, and pntk::gui_custom.

◆ get_native_widget()

virtual native_widget pntk::gui_widget::get_native_widget ( )

virtual

Returns the underlaying native widget implementation.

◆ get_parent()

virtual gui_widget* pntk::gui_widget::get_parent ( )

virtual

Returns the widgets parent if it has one.

◆ get_position()

gui_point pntk::gui_widget::get_position ( )

Returns the position of the widget within its container (including all border padding).

◆ get_screen_position()

gui_point pntk::gui_widget::get_screen_position ( )

Returns the position of the widget within the screen.

◆ get_self_name()

virtual std::string pntk::gui_widget::get_self_name ( )

virtual

Returns the human readable name associated with the widget class type.

Reimplemented in pntk::gui_graphic_listbox, pntk::gui_dataless_listbox, pntk::gui_notebook, pntk::gui_container, pntk::gui_combobox, pntk::gui_sizer, pntk::gui_window, pntk::gui_spacer, pntk::gui_separator, and pntk::gui_canvas.

◆ get_self_type()

virtual widget_types pntk::gui_widget::get_self_type ( )

virtual

Returns the type of widget: GUI_TYPE_WIDGET.

Reimplemented in pntk::gui_graphic_listbox, pntk::gui_dataless_listbox, pntk::gui_notebook, pntk::gui_container, pntk::gui_combobox, pntk::gui_sizer, pntk::gui_window, pntk::gui_spacer, pntk::gui_separator, and pntk::gui_canvas.

◆ get_sequential()

gui_widget* pntk::gui_widget::get_sequential	(	bool	next,
		bool	wrap = `false`
	)

Returns the next/previous (based on next) widget from the sequence of them in the window if there is one. Specify true for wrap to wrap around and thus always return a value.

◆ get_sibling()

gui_widget* pntk::gui_widget::get_sibling ( bool next )

Returns the widgets next/previous sibling if it has one.

◆ get_size()

virtual gui_size pntk::gui_widget::get_size ( )

virtual

Returns the extent of the widget (including all border padding).

Reimplemented in pntk::gui_container, and pntk::gui_sizer.

◆ get_style()

virtual int pntk::gui_widget::get_style ( )

virtual

Returns the widgets style flag.

◆ get_weight()

virtual int pntk::gui_widget::get_weight ( )

virtual

Returns the widgets weight/scale factor.

◆ get_widget_geometry()

static void pntk::gui_widget::get_widget_geometry	(	int	alignment,
		gui_point	base,
		gui_size	max,
		gui_point &	child_pos,
		gui_size &	child_size
	)

static

Calculates the width, height, and position of the given alignment, the offset as base, the @ max size, the current child_pos and then minimum child_size.

◆ has_focus()

virtual bool pntk::gui_widget::has_focus ( )

virtual

Returns a boolean that indicates if this widget has the keyboard focus.

Reimplemented in pntk::gui_graphic_listbox, pntk::gui_dataless_listbox, and pntk::gui_notebook.

◆ init()

virtual void pntk::gui_widget::init ( bool visible = true )

virtual

Initializes the widget, setting default values to its members.

Reimplemented in pntk::gui_sizer.

◆ is_container()

virtual bool pntk::gui_widget::is_container ( )

virtual

Returns whether or not this widget is a container, or subclassed from container.

Reimplemented in pntk::gui_container.

◆ is_ok()

virtual bool pntk::gui_widget::is_ok ( )

virtual

Returns a boolean that represents the state of the internal native widget. If the native widget is instantiated correctly, this is true, false otherwise.

◆ is_owned()

virtual bool pntk::gui_widget::is_owned ( )

virtual

Returns whether or not the widget has a parent.

◆ is_visible()

virtual bool pntk::gui_widget::is_visible ( )

virtual

Returns if the widget is visible.

◆ refresh()

virtual void pntk::gui_widget::refresh	(	int	flags = `0`,
		const gui_rect *	area = `nullptr`
	)

virtual

Forces the window to repaint.

Reimplemented in pntk::gui_custom.

◆ reparent()

virtual void pntk::gui_widget::reparent ( gui_widget * parent )

virtual

Removed the widget from its current parent container and puts it in the given parent container with the same alignment and size requests.

◆ set_actual_position()

virtual void pntk::gui_widget::set_actual_position ( gui_point pos )

virtual

Sets the position (top left corner) of the widget (ignoring all border padding) within its container to the given pos.

◆ set_actual_size()

virtual void pntk::gui_widget::set_actual_size ( gui_size size )

virtual

Sets the extent of the widget (not counting the border padding) to the given size.

Reimplemented in pntk::gui_container, and pntk::gui_window.

◆ set_alignment()

virtual void pntk::gui_widget::set_alignment ( int alignment )

virtual

Sets the widgets alignment (if it has a parent) to the given alignment value. Alignments include GUI_ALIGN_RIGHT, GUI_ALIGN_LEFT, GUI_ALIGN_TOP, GUI_ALIGN_BOTTOM, GUI_ALIGN_CENTER_H, GUI_ALIGN_CENTER_V, GUI_EXPAND_H, GUI_EXPAND_V

◆ set_bg_color()

virtual void pntk::gui_widget::set_bg_color ( gui_color color )

virtual

Sets the widgets background to the given color.

Reimplemented in pntk::gui_graphic_listbox, and pntk::gui_dataless_listbox.

◆ set_border()

virtual void pntk::gui_widget::set_border ( int border )

virtual

Sets the border/padding size of the widget.

◆ set_border_style()

virtual void pntk::gui_widget::set_border_style ( int style )

virtual

Sets the border/padding style of the widget. Styles include GUI_BORDER_NONE, GUI_BORDER_TOP, GUI_BORDER_BOTTOM, GUI_BORDER_LEFT, GUI_BORDER_RIGHT, GUI_BORDER_ALL

◆ set_default()

void pntk::gui_widget::set_default ( )

Sets this widget as the default widget that is activated when the user presses Enter on the window.

◆ set_enabled()

virtual void pntk::gui_widget::set_enabled ( bool state )

virtual

Sets enabled state of the widget to the given state

◆ set_fg_color()

virtual void pntk::gui_widget::set_fg_color ( gui_color color )

virtual

Sets the widgets foreground to the given color.

Reimplemented in pntk::gui_graphic_listbox, and pntk::gui_dataless_listbox.

◆ set_focus()

virtual void pntk::gui_widget::set_focus ( )

virtual

Sets the keyboard focus to this widget if it is a focusable widget.

Reimplemented in pntk::gui_graphic_listbox, pntk::gui_dataless_listbox, and pntk::gui_notebook.

◆ set_font()

virtual void pntk::gui_widget::set_font ( gui_font * font )

virtual

Sets the widgets font.

Reimplemented in pntk::gui_custom.

◆ set_label()

virtual void pntk::gui_widget::set_label ( const std::string & text )

virtual

Changes the text on the label of the widget.

Reimplemented in pntk::gui_window, pntk::gui_tool, pntk::gui_radiobutton, pntk::gui_togglebutton, pntk::gui_frame, pntk::gui_label, pntk::gui_button, and pntk::gui_checkbox.

◆ set_position()

virtual void pntk::gui_widget::set_position ( gui_point pos )

virtual

Sets the position (top left corner) of the widget (including all border padding) within its container to the given pos.

Reimplemented in pntk::gui_window.

◆ set_size()

virtual void pntk::gui_widget::set_size ( gui_size size )

virtual

Sets the extent of the widget (including all border padding) to the given size.

◆ set_style()

virtual void pntk::gui_widget::set_style ( int style )

virtual

Sets the widgets style flag to the give style

Reimplemented in pntk::gui_textbox, pntk::gui_radiobutton, pntk::gui_label, pntk::gui_checkbox, pntk::gui_listbox, pntk::gui_togglebutton, pntk::gui_check_listbox, and pntk::gui_combobox.

◆ set_system_cursor()

virtual void pntk::gui_widget::set_system_cursor ( gui_system_cursors cursor )

virtual

Sets the widgets system cursor.

◆ set_weight()

virtual void pntk::gui_widget::set_weight ( int weight )

virtual

Sets the widgets weight/scale factor (if it has a parent) to the given weight

◆ show()

virtual void pntk::gui_widget::show ( bool state )

virtual

Sets visibility of the widget to the given state

The documentation for this class was generated from the following file:

include/gui_widget.h

Public Member Functions

Static Public Member Functions

Public Attributes

Friends

Additional Inherited Members

Detailed Description

Member Function Documentation

◆ bound_by_requested()

◆ feed_mouse()

◆ get_actual_min_size()

◆ get_actual_position()

◆ get_actual_size()

◆ get_alignment()

◆ get_bg_color()

◆ get_border()

◆ get_border_style()

◆ get_enabled()

◆ get_extra_data()

◆ get_fg_color()

◆ get_font()

◆ get_label()

◆ get_min_size()

◆ get_native_widget()

◆ get_parent()

◆ get_position()

◆ get_screen_position()

◆ get_self_name()

◆ get_self_type()

◆ get_sequential()

◆ get_sibling()

◆ get_size()

◆ get_style()

◆ get_weight()

◆ get_widget_geometry()

◆ has_focus()

◆ init()

◆ is_container()

◆ is_ok()

◆ is_owned()

◆ is_visible()

◆ refresh()

◆ reparent()

◆ set_actual_position()

◆ set_actual_size()

◆ set_alignment()

◆ set_bg_color()

◆ set_border()

◆ set_border_style()

◆ set_default()

◆ set_enabled()

◆ set_fg_color()

◆ set_focus()

◆ set_font()

◆ set_label()

◆ set_position()

◆ set_size()

◆ set_style()

◆ set_system_cursor()

◆ set_weight()

◆ show()
